Workflow: Designer Creating Brand-Compliant Palettes • huerd

The Scenario

You’re a designer creating a color palette for a client’s annual report. Your requirements are:

Include specific brand colors that the client requires
Generate complementary colors that work with the brand
Ensure accessibility for compliance requirements
Export to multiple formats (CSS, Sass, etc.)
Document and justify your color choices

This vignette shows how huerd simplifies brand-compliant palette creation.

Starting with Brand Colors

Use brand_palette() when you have specific colors that must be included:

library(huerd)

# Client's brand colors
client_navy <- "#003366"
client_orange <- "#FF6600"

# Create a 6-color palette around the brand
palette <- brand_palette(
  brand_colors = c(client_navy, client_orange),
  n_total = 6
)

print(palette)
#>
#> -- huerd Color Palette (6 colors) --
#> Colors:
#> [ 1] #1A0000
#> [ 2] #003366
#> [ 3] #5268D2
#> [ 4] #FF6600
#> [ 5] #9BB1FF
#> [ 6] #FFF8D5
#>
#> -- Quality Metrics Summary --
#> * Min. Perceptual Distance (OKLAB): 0.224
#> * Optimizer Performance Ratio      : 61.1%
#> * Min. CVD-Safe Distance (OKLAB)  : 0.216
#>
#> -- Generation Details --
#> * Optimizer Iterations: 265
#> * Optimizer Status: NLOPT_XTOL_REACHED: Optimization stopped because xtol_rel or xtol_abs (above) was reached.

The brand colors are preserved exactly, and huerd generates optimized complementary colors.

Visualizing Your Palette

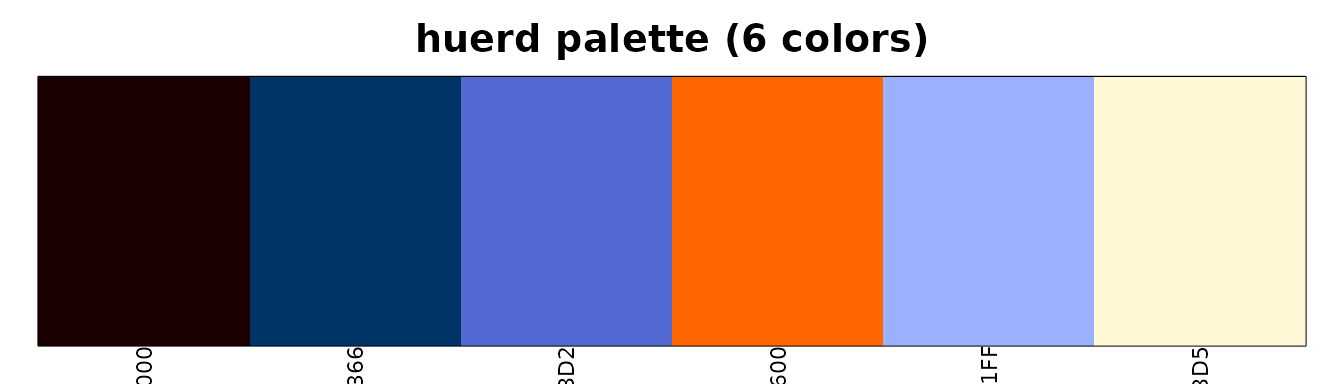

See your palette at a glance:

plot(palette)

For client presentations, use the full analysis dashboard:

plot_palette_analysis(palette)

Controlling Lightness for Print

For print materials, you may want to avoid very light or very dark colors:

# Mid-range lightness for better print reproduction
print_palette <- quick_palette(
  n = 6,
  brand_colors = c(client_navy, client_orange),
  lightness = "mid"  # Avoids extremes
)

print(print_palette)
#>
#> -- huerd Color Palette (6 colors) --
#> Colors:
#> [ 1] #210000
#> [ 2] #003366
#> [ 3] #AB54FF
#> [ 4] #FF6600
#> [ 5] #7EC6FF
#> [ 6] #FFDC87
#>
#> -- Quality Metrics Summary --
#> * Min. Perceptual Distance (OKLAB): 0.228
#> * Optimizer Performance Ratio      : 62.4%
#> * Min. CVD-Safe Distance (OKLAB)  : 0.204
#>
#> -- Generation Details --
#> * Optimizer Iterations: 524
#> * Optimizer Status: NLOPT_XTOL_REACHED: Optimization stopped because xtol_rel or xtol_abs (above) was reached.

Or specify custom bounds:

# Very specific lightness range
controlled_palette <- generate_palette(
  n = 6,
  include_colors = c(client_navy, client_orange),
  init_lightness_bounds = c(0.3, 0.7),  # 30% to 70% lightness
  progress = FALSE
)

Documenting for Stakeholders

Human-Readable Quality Assessment

quality <- interpret_palette_quality(palette)
print(quality)
#>
#> ── Palette Quality Assessment ──
#>
#> This 6-color palette is highly optimized (61% of theoretical maximum).
#> Excellent - colors are highly distinct and easy to differentiate
#>
#> ── Distinctness
#> Excellent - colors are highly distinct and easy to differentiate
#>
#> ── Accessibility
#> Excellent - palette is safe for most color vision deficiencies

This gives you language you can use directly in client presentations.

Technical Metrics

For detailed documentation:

evaluation <- evaluate_palette(palette)

cat("=== Palette Quality Report ===\n\n")
#> === Palette Quality Report ===
cat("Number of colors:", evaluation$n_colors, "\n")
#> Number of colors: 6
cat("Minimum perceptual distance:", round(evaluation$distances$min, 3), "\n")
#> Minimum perceptual distance: 0.224
cat("Mean perceptual distance:", round(evaluation$distances$mean, 3), "\n")
#> Mean perceptual distance: 0.438
cat("Optimization performance:", round(evaluation$distances$performance_ratio * 100, 1), "%\n")
#> Optimization performance: 61.1 %
cat("\n=== Accessibility ===\n")
#>
#> === Accessibility ===
cat("CVD worst-case distance:", round(evaluation$cvd_safety$worst_case_min_distance, 3), "\n")
#> CVD worst-case distance: 0.216
cat("CVD-safe:", is_cvd_safe(palette), "\n")
#> CVD-safe: TRUE

CVD Simulation for Compliance

Show stakeholders how the palette appears to colorblind viewers:

cvd_sim <- simulate_palette_cvd(palette, cvd_type = "all")
print(cvd_sim)
#>
#> -- huerd CVD Simulation Result (Multiple Types, Severity: 1.00) --
#> Palette for: original
#>   [ 1] #1A0000
#>   [ 2] #003366
#>   [ 3] #5268D2
#>   [ 4] #FF6600
#>   [ 5] #9BB1FF
#>   [ 6] #FFF8D5
#> Palette for: protan
#>   [ 1] #050400
#>   [ 2] #153868
#>   [ 3] #2D76D6
#>   [ 4] #938100
#>   [ 5] #97B9FF
#>   [ 6] #FFF6D3
#> Palette for: deutan
#>   [ 1] #0C0A00
#>   [ 2] #002F65
#>   [ 3] #0B6BD0
#>   [ 4] #B8A400
#>   [ 5] #8EB0FD
#>   [ 6] #FFF8D6
#> Palette for: tritan
#>   [ 1] #1E0000
#>   [ 2] #003F47
#>   [ 3] #008093
#>   [ 4] #FF3C58
#>   [ 5] #7BC1CD
#>   [ 6] #FFF3EE

Exporting Your Palette

huerd can export to multiple formats for development handoff:

CSS Custom Properties

css_output <- export_palette(
  palette,
  format = "css",
  names = c("brand-navy", "brand-orange", "accent-1", "accent-2", "accent-3", "accent-4")
)
cat(css_output)
#> :root {
#>   --brand-navy: #1A0000;
#>   --brand-orange: #003366;
#>   --accent-1: #5268D2;
#>   --accent-2: #FF6600;
#>   --accent-3: #9BB1FF;
#>   --accent-4: #FFF8D5;
#> }

Sass Variables

sass_output <- export_palette(
  palette,
  format = "sass",
  names = c("brand-navy", "brand-orange", "accent-1", "accent-2", "accent-3", "accent-4")
)
cat(sass_output)
#> $brand-navy: #1A0000;
#> $brand-orange: #003366;
#> $accent-1: #5268D2;
#> $accent-2: #FF6600;
#> $accent-3: #9BB1FF;
#> $accent-4: #FFF8D5;

JSON for Web Applications

json_output <- export_palette(palette, format = "json")
cat(json_output)
#> {
#>     "color_1": "#1A0000",
#>     "color_2": "#003366",
#>     "color_3": "#5268D2",
#>     "color_4": "#FF6600",
#>     "color_5": "#9BB1FF",
#>     "color_6": "#FFF8D5"
#> }

Save to Files

# Export directly to files
export_palette(palette, format = "css", file = "brand-colors.css")
export_palette(palette, format = "sass", file = "_brand-colors.scss")
export_palette(palette, format = "json", file = "brand-colors.json")

Reproducibility for Version Control

Every palette includes metadata for exact reproduction:

# Original palette
original <- generate_palette(
  n = 6,
  include_colors = c(client_navy, client_orange),
  progress = FALSE
)

# Reproduce exactly (e.g., in a different session)
reproduced <- reproduce_palette(original, progress = FALSE)

# Verify they're identical
identical(as.character(original), as.character(reproduced))
#> [1] TRUE

Complete Design Workflow Example

# 1. Define brand colors
brand_colors <- c("#003366", "#FF6600")

# 2. Generate palette
final_palette <- brand_palette(brand_colors, n_total = 6)

# 3. Verify quality
quality_report <- interpret_palette_quality(final_palette)
print(quality_report)
#>
#> ── Palette Quality Assessment ──
#>
#> This 6-color palette is well optimized (49% of theoretical maximum). Excellent
#> - colors are highly distinct and easy to differentiate
#>
#> ── Distinctness
#> Excellent - colors are highly distinct and easy to differentiate
#>
#> ── Accessibility
#> Excellent - palette is safe for most color vision deficiencies

# 4. Check accessibility
cat("\nAccessibility Check:", if(is_cvd_safe(final_palette)) "PASS" else "REVIEW NEEDED", "\n")
#>
#> Accessibility Check: PASS

# 5. Visual review
plot_palette_analysis(final_palette)


# 6. Export for development
cat("\n=== CSS Export ===\n")
#>
#> === CSS Export ===
cat(export_palette(final_palette, format = "css",
                   names = c("primary", "secondary", "accent1", "accent2", "accent3", "accent4")))
#> :root {
#>   --primary: #0E0020;
#>   --secondary: #003366;
#>   --accent1: #6B0000;
#>   --accent2: #A04700;
#>   --accent3: #FF6600;
#>   --accent4: #00DFD9;
#> }

Summary

For designers, huerd provides:

brand_palette() - Start with your required brand colors
quick_palette(lightness = ...) - Control lightness for print/digital
interpret_palette_quality() - Client-ready quality language
simulate_palette_cvd() - Accessibility documentation
export_palette() - CSS, Sass, JSON, CSV exports
reproduce_palette() - Exact reproducibility for version control

This workflow ensures your brand palettes are optimized, accessible, and properly documented.
